Small Medical Oxygen Gas Generator

Especially suitable for small hospitals. Easy to installation,Easy to operation, easy to air freight. convenient maintenance and low cost. O₂ Purity:93±3%, O₂ Capacity:50 L/min.
  • Lead Time:

    10days
  • Product Orgin:

    Guangzhou,China
  • Shipping Port:

    Guangzhou
  • Payment:

    This supplier also supports L/C,D/A,D/P,T/T,W
  • Price:

    $5000/set
  • Market Price:

    $35000
  • Color:

    white/Blue
  • Product Details


Small Medical O2 Generator Specifications

WG-STD-50L

(Purity:93±3%,Flow:50L/min)






Equipment composition and technical specifications

Item

Specifications

Pic

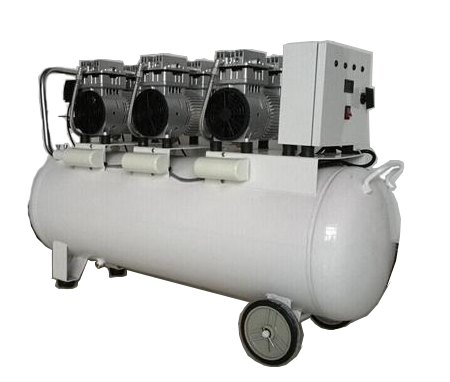

Air

compressor

Power Supply

AC 220V/50HZ



Input Power

3000 W

Output Pressure

700 kPa

Flow L/min

580 L/min

Dimensions

134×43×85 cm

Weight

128 Kg

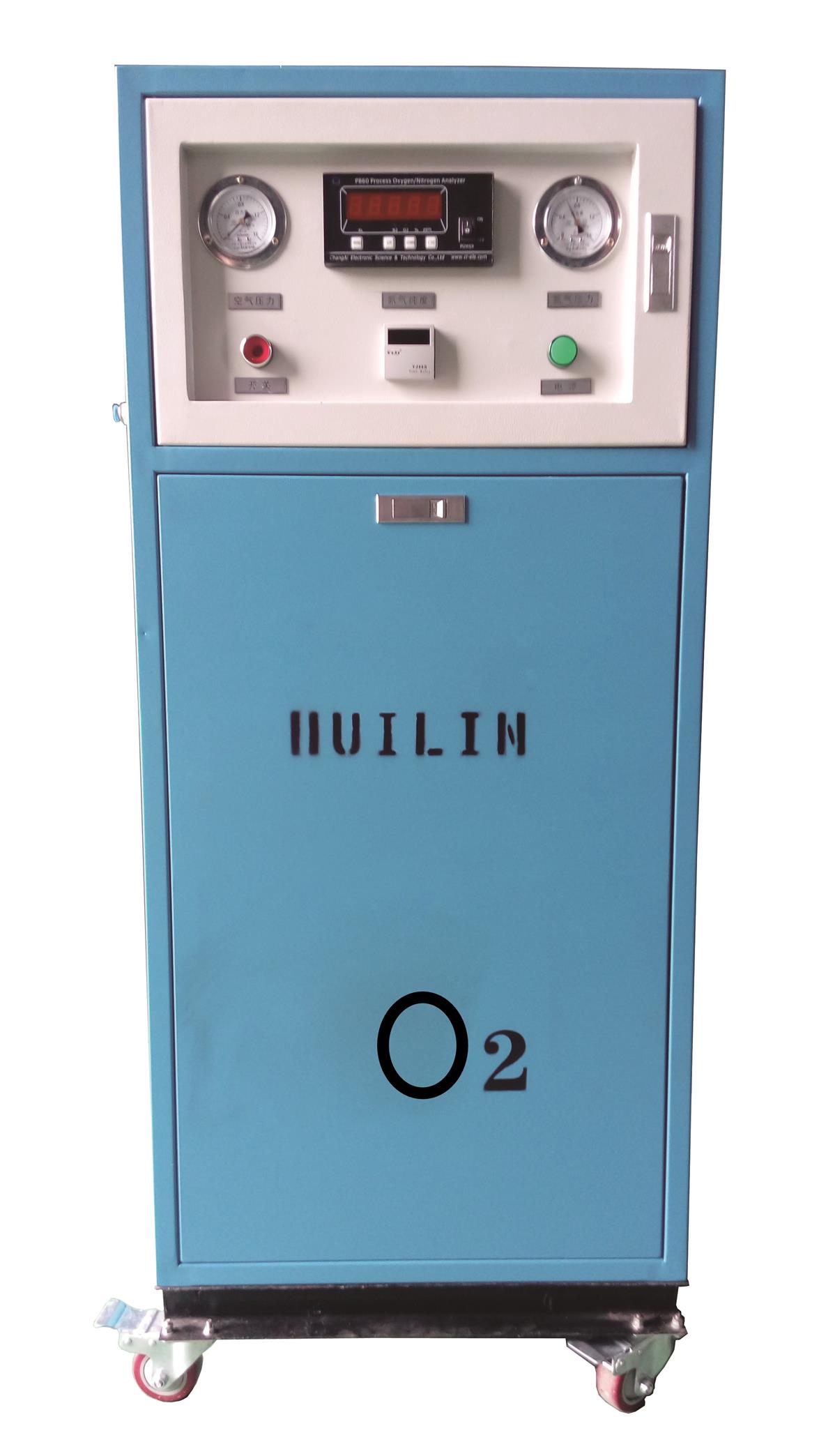

Oxygen

Generator

Oxygen Flow

50 L/min



Oxygen Purity

93%±3%

Power Supply

AC 220V/50HZ

Input Power:

30 W

Output Pressure

3~4 bar

Dimensions

55×42×140 cm

Weight

120 Kg
