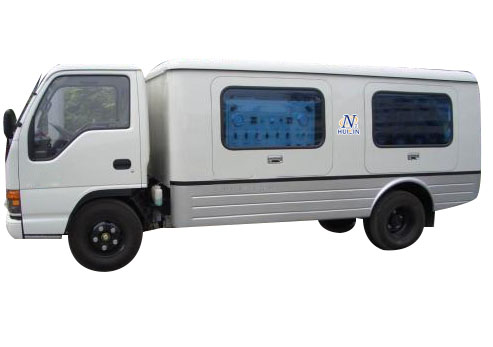

Oxygenated Vehicle for Aircraft

The oxygenated vehicle is mainly charged with the aeronautical oxygen produced by the surface equipment, and is charged into the vehicle gas cylinder group to transport and convert into the storage system of aircraft and other airplane. The rated discharge pressure of the equipment is 35MPa, which is mainly composed of 7 parts, such as diaphragm compressor, gas cylinder group, trachea control system, electric control system, power transmission system, car and automobile chassis.
  • Lead Time:

    30days
  • Product Orgin:

    Guangzhou,China
  • Shipping Port:

    Guangzhou
  • Payment:

    This supplier also supports L/C,D/A,D/P,T/T,W
  • Color:

    white
  • Product Details

Oxygenated Vehicle for Aircraft

Principle



The oxygenated vehicle is mainly charged with the aeronautical oxygen produced by the surface equipment, and is charged into the vehicle gas cylinder group to transport and convert into the storage system of aircraft and other airplane. The rated discharge pressure of the equipment is 35MPa, which is mainly composed of 7 parts, such as diaphragm compressor, gas cylinder group, trachea control system, electric control system, power transmission system, car and automobile chassis.

When the pneumatic equipment works, the power of the automobile engine is used to drive the diaphragm compressor through the transmission device (using the crank slider), and the electrical control system uses two sets of circuit, computer protection circuit and conventional protection circuit, which have the functions of detection, display, alarm, disorderly close-down and so on.  When there is a fire in the compressor compartment of the oxygen filling equipment, the diaphragm compressor will stop automatically, and an electronic control box or manual mode is used to give an electronic control signal to the fully submerged EBM extinguisher. The fire extinguisher is automatically sprinkled by the EBM extinguisher, and the gas source is automatically cut off and the safety protection is realized


Oxygenated Vehicle Parameter



O2 Cylinders Volume: 40L

O2 Cylinders Rated Working Pressure:  35Mpa

Cylinders Qty: 15pcs

External pressure of gas supply: ① 3 MPa   ② 15 MPa ③ 23 MPa ④ 25 MPa

Gas supply Quality

Dew Point: ≤ -63 ℃

Solid Pellets: ≯ 100μm


Why choose us


1. We have more than 10 years of experience in air separation equipment and have rich experience in facing all difficulties.
2. Our delivery cycle is short. The soonest we can deliver the goods is 15 working days since we pay the deposit.
3.We have professional engineers in charge of after-sales service, which can be provided anywhere in the world.
4. we have a unique technology, so that the life of the molecular sieve more than 10 years.
5.All our machines are fully automated and there is no need for guards.
6. Our machines save 10%~20% more energy than our counterparts.



Detail photo
