Air separation equipment manufactuer

Nitrogen Generator for Foodstuff

Home /

Nitrogen Generator for Foodstuff

/PSA Nitrogen Gas Generator For Food Industry

PSA Nitrogen Gas Generator For Food Industry

All pipes are stainless steel.Used for food preservation and packaging.
  • Lead Time:

    30days
  • Product Orgin:

    Guangzhou,China
  • Shipping Port:

    Guangzhou
  • Payment:

    This supplier also supports L/C,D/A,D/P,T/T,W
  • Price:

    $5000/set
  • Market Price:

    $50000
  • Color:

    blue
  • Product Details

PSA Nitrogen Gas Generator For Foodstuff


Characteristics




1.N2 purity is accurate and reliable due to the result displayed online on numeric meter;
2.Reasonable N2 purity,can be adjusted from 99% to 99.9%;



3.Particular filter of active carbon material,remove tink and peculiar to ensure the pure smell of the material food.
4.Stainless steel pipe meet the material requirement of food industry GMP standard.

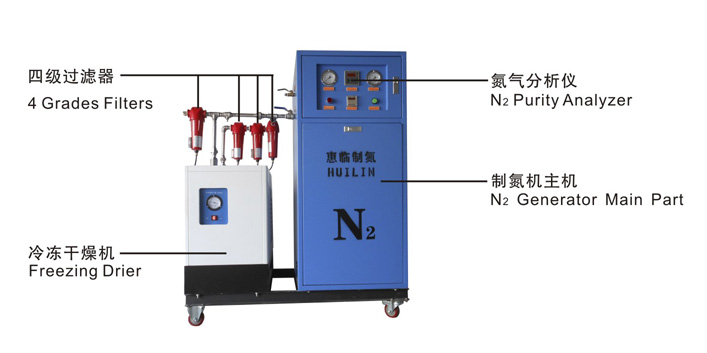

5.Equip four grades filters and drier to remove water,oil and impurity of compressed air to make sure N2 generator running smoothly and steady,guarantee life achieve more than 10 years;



6.Ganged pressure,automatic stop once unused gas at the end of the machine;saving compressed air,convenient management.
7.One key ON/OFF after electronic and gas linking,easy installation and operation;


Specifications


Type specification table of PSA nitrogen making machine for food preservation

Model

N2 Flow(Nm3/hr)

 N2 Pressure

   weight(kg)

 External Dimension
       L×H×W(mm)

 In/Out Nozzle Size

  N2 Dew Point( ℃)

WG-Food-3

 3

 ≥99.5%



  136

1100×660×1355

 G¼或Φ8

  ≤-40℃

WG-Food-5

 5

  155

WG-Food-10

 10

  210

1100×660×1900



Nitrogen generator generally function include power and compressed air consumption needed as following form


Item Name

Specifications

Notes

Power

V / Hz /Ф

220V/50Hz/1Ф

Air Compressor is not included.

Power

0.25Kw

Compressed Air Source

Flow

WG-Food-3

0.126m3/min

——

WG-Food-5

0.21m3/min

——

WG-Food-10

0.42m3/min

——

Cmprssd Air Pressure

≥0.7Mpa



Application


1. Low-flow nitrogen industry.

2, food packaging industry, such as fruit wholesale supermarket fruit packaging and so on.


Why choose us


1. We have more than 10 years of experience in air separation equipment and have rich experience in facing all difficulties.

2. Our delivery cycle is short. The soonest we can deliver the goods is 15 working days since we pay the deposit.

3.We have professional engineers in charge of after-sales service, which can be provided anywhere in the world.

4. we have a unique technology, so that the life of the molecular sieve more than 10 years.

5. All our machines are fully automated and there is no need for guards.

6. Our machines save 10%~20% more energy than our counterparts.


Get Free Inquiry Now
We will contact you as soon as possible!
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
